Compact but Powerful
IP Intercom Module im1
OverviewPeak efficiency for seamless integration
The Invisible Powerhouse
for crystal-clear audio quality

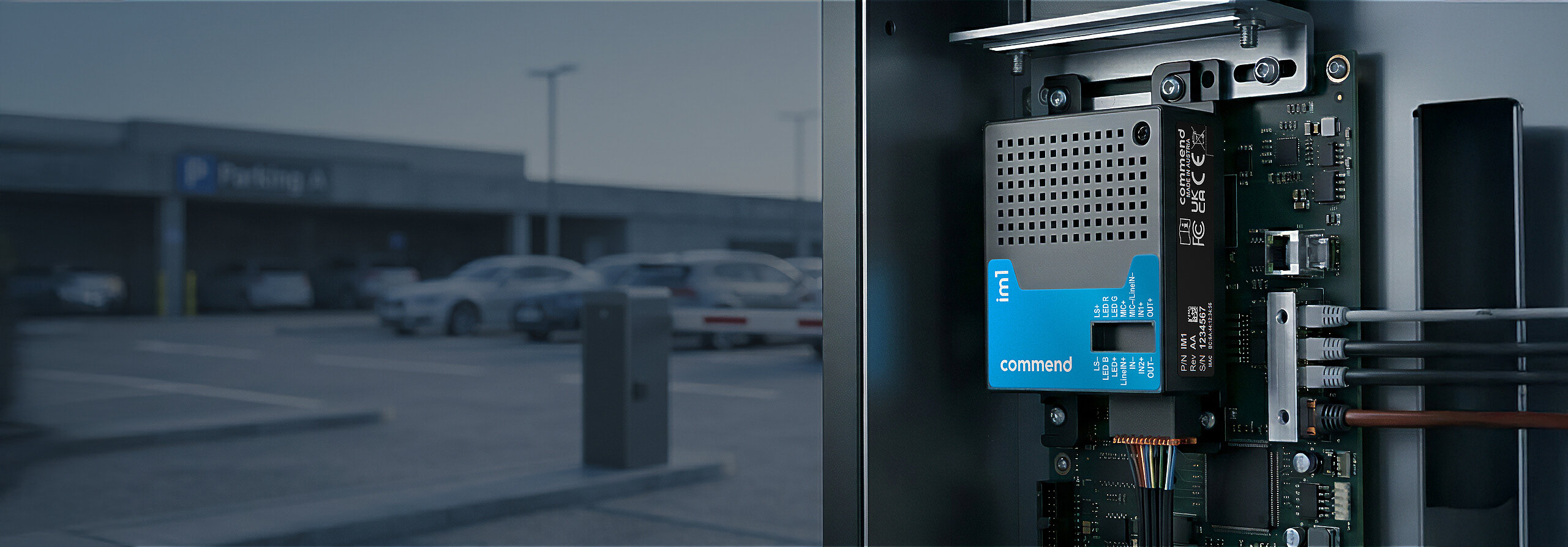

In critical environments, space is a luxury you often don’t have. Whether it’s an emergency help point, a barrier, or an integrated industrial panel, the im1 is designed to disappear into your hardware while making your voice heard louder than ever.
Small enough to fit in the palm of your hand, powerful enough to secure your infrastructure. In an era of increasing cyber threats, the ultra-compact and lightweight im1 (only 24 x 54 x 84.5 mm) is engineered to meet demanding IT security standards, protecting your network from the edge up.
The im1 is a cost-effective intercom module powered by the high-performance Symphony MX platform.
- Crystal clear sound with up to 20 kHz speech quality and a power of up to 6.1 W thanks to the latest Smart Audio Amplifier technology
- Special audio enhancing functions (Intelligent Volume Control, background noise suppression) ensure outstanding speech intelligibility in any situation
- Natural hands-free communication with OpenDuplex®
- Easy installation through compact design and seamlessly attachable loudspeaker module
- Simple and fast connection of cables with pluggable spring-type terminals
- Flexible expansion with add-on equipment via USB interface
- 2 inputs for floating contacts and 1 relay output
- Extra-high volume capacity and outstanding speech intelligibility thanks to perfectly fitted loudspeaker module
- Possibility to connect any other loudspeaker
- All connection ports arranged on same side for easy accessibility
- Loudspeaker module (LSM)
- Loudspeaker (LS8, LS15, AL 10-16)
- Microphone (MIC 480)
- USB input/output module (EB1E1A)
- Expansion module (EB3E2A)
- PoE injector for local power supply (PA 25W POE-DC)
- IP secure connector, safety switch box
- Top-hat rail clamp (ET 901-HSH35)
- Induction loop kit (AFIL-USB)
- Status indication LED (LED3)
im1 + ADAPTER = Quick system upgrade
One of the strongest advantages of im1 is how easily it fits into specialized hardware, ensuring clear voice communication even in high-noise environments. By utilizing Evergreen Technology, the im1 ensures that systems remain scalable and do not become obsolete. To simplify the transition, dedicated mounting adapters like the ADAPT-908 and ADAPT-962 are available:
Installed faster than explained
ADAPT-908
With our adapter solutions, customers can upgrade installed systems quickly and efficiently - without complex redesigns. This significantly lowers barriers for modernization projects and opens strong retrofit opportunities. While the combination of im1 and ADAPT-908 already delivers exceptional performance, we are taking it a step further. By integrating im3, you can also unlock full video capabilities within your environment.
Watch the magic happen!
Fast to fit, built to last
ADAPT-962
The mounting plate is specifically designed to replace an existing module with an im1 or identically constructed im3.
The adapter includes a pre-assembled I/O plug, a loudspeaker, a microphone and an RGB LED – no extra components needed!
Let's see the process in real-time!
